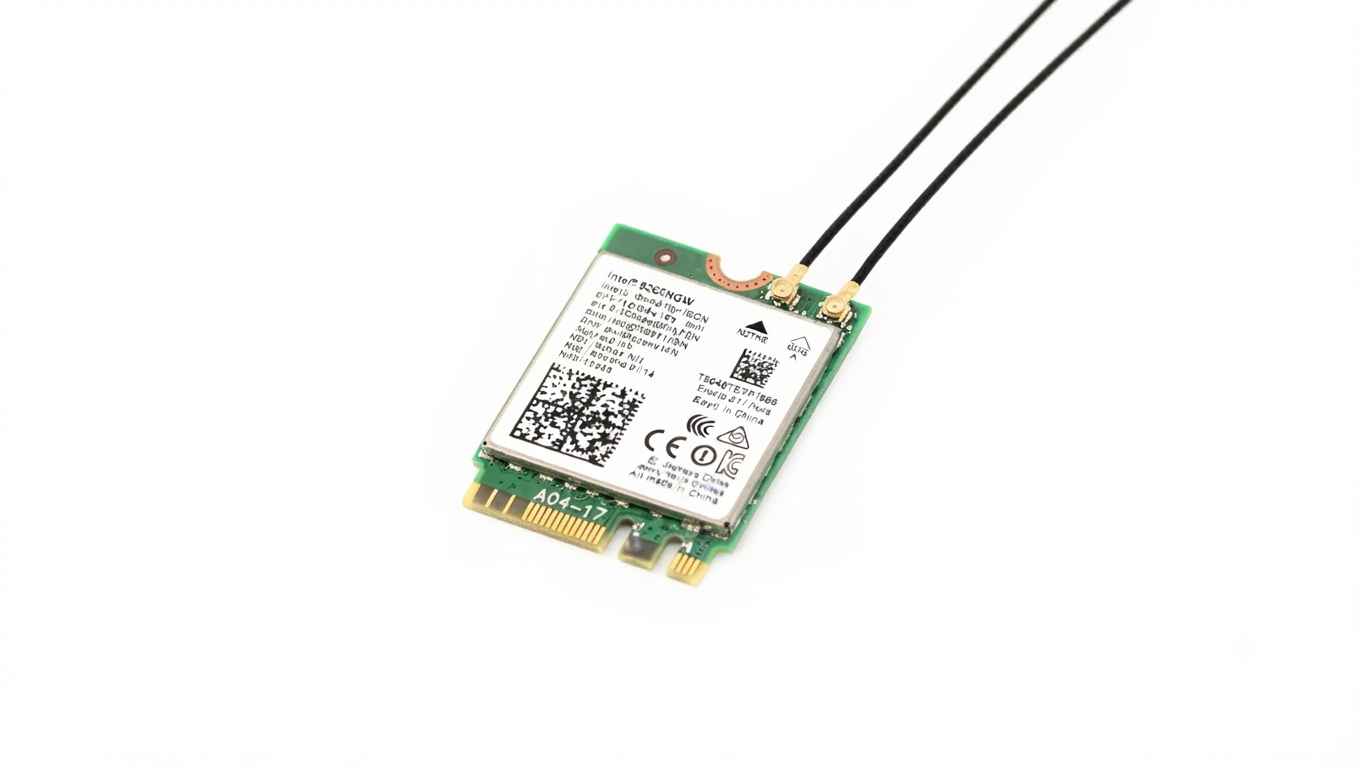

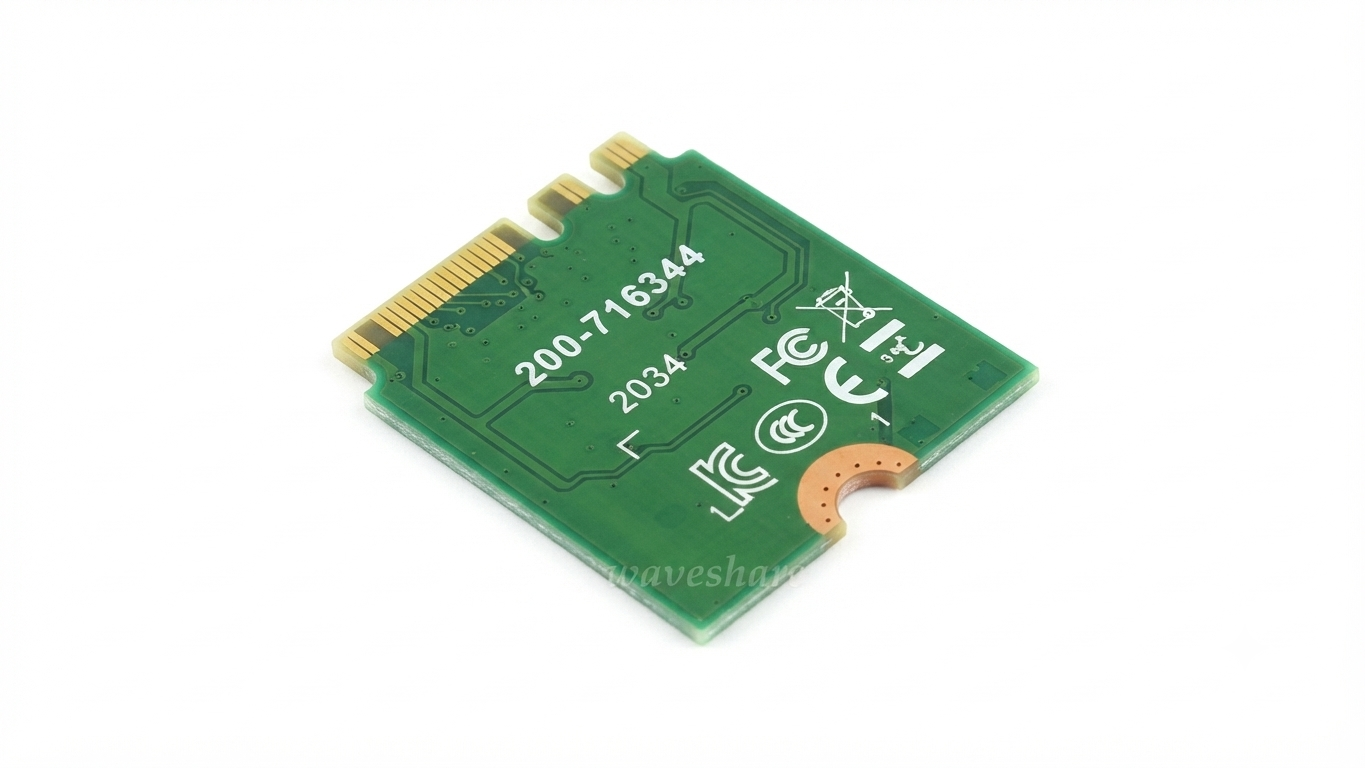

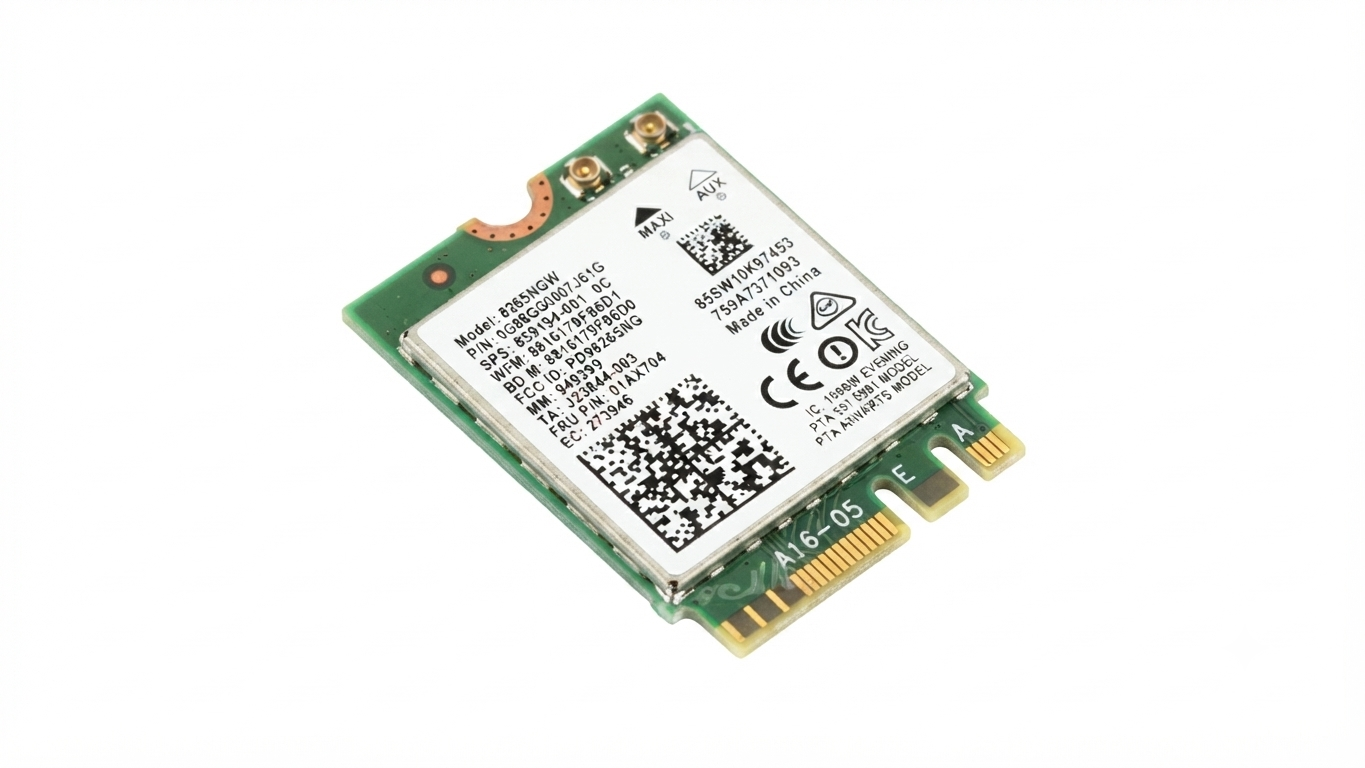

The AC8265 Wireless NIC is a high-performance, dual-mode wireless network interface card designed specifically for the NVIDIA Jetson Nano developer kit and compatible embedded systems. Powered by the robust Intel 8265AC module, it brings reliable, high-speed wireless networking and Bluetooth capabilities to your edge-AI deployments, eliminating the restriction of wired Ethernet cables.
Key Features
Intel 8265AC Core: Delivers enterprise-grade stability, low latency, and efficient power management.
Dual-Band Wi-Fi: Supports simultaneous 2.4GHz and 5GHz frequencies for flexible network integration.
High-Speed Transmission: Offers up to 300Mbps on 2.4GHz and up to 867Mbps on 5GHz using the 802.11ac protocol.
Integrated Bluetooth 4.2: Enables seamless peripheral connection for keyboards, mice, sensors, and gamepads.
NGFF (M.2) Interface: Standard form factor ensuring quick, secure installation directly onto compatible carrier boards.
Technical Specifications
| Specification | Details |
| Model | AC8265 Wireless NIC |
| Onboard Chip | Intel 8265AC |
| Frequency Bands | 2.4GHz / 5GHz Dual-Band |
| Max Speed | 300Mbps (2.4G) / 867Mbps (5G) |
| WiFi Protocol | 802.11ac |
| Bluetooth Version | Bluetooth 4.2 |
| Bus Interface | NGFF (M.2) |
| Antenna Interface | IPEX Connector |
| Operating Systems | Linux, Windows 10 / 8.1 / 8 / 7 |
| Dimensions | 22mm × 30mm × 2.4mm |

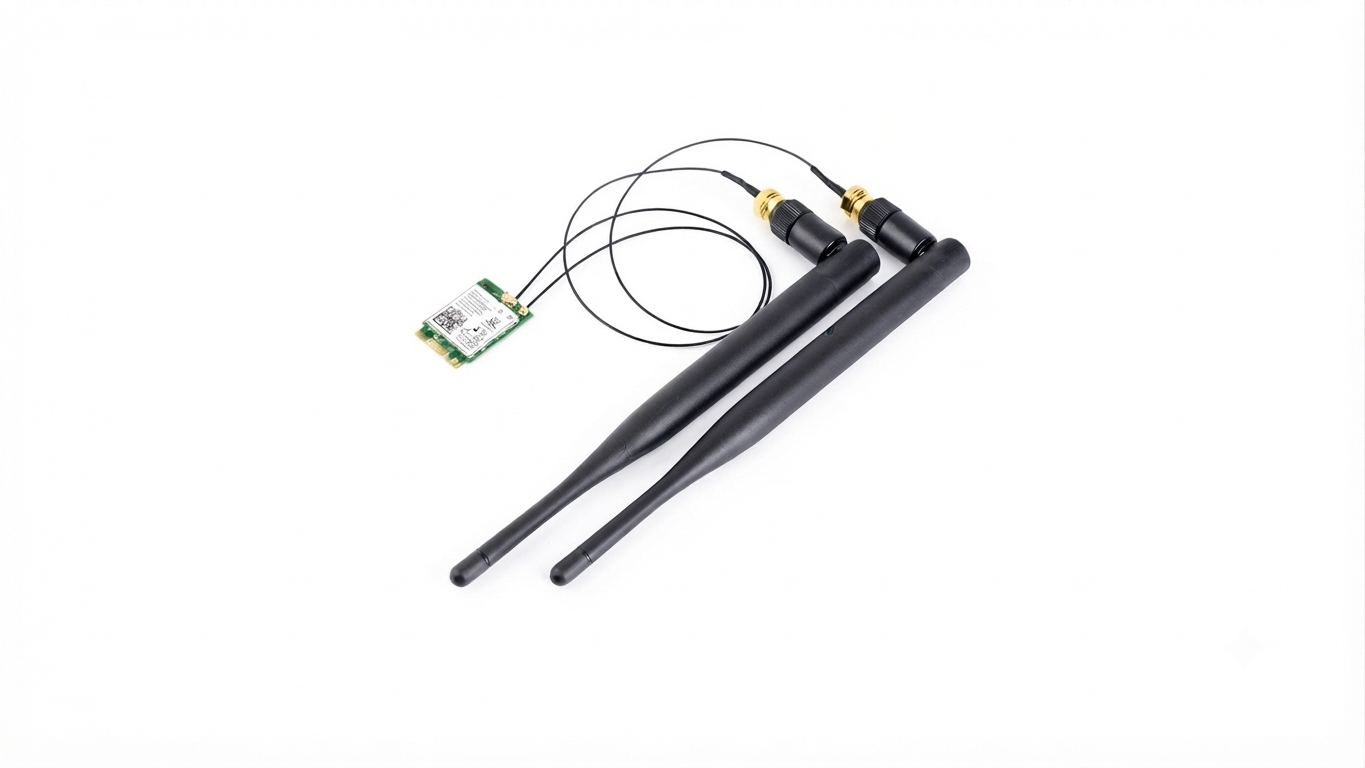

Package Contents
1x AC8265 M.2 Wireless NIC Module
2x External Black Antennas
2x IPEX to SMA Antenna Cables
Mounting screws and screwdriver tool
