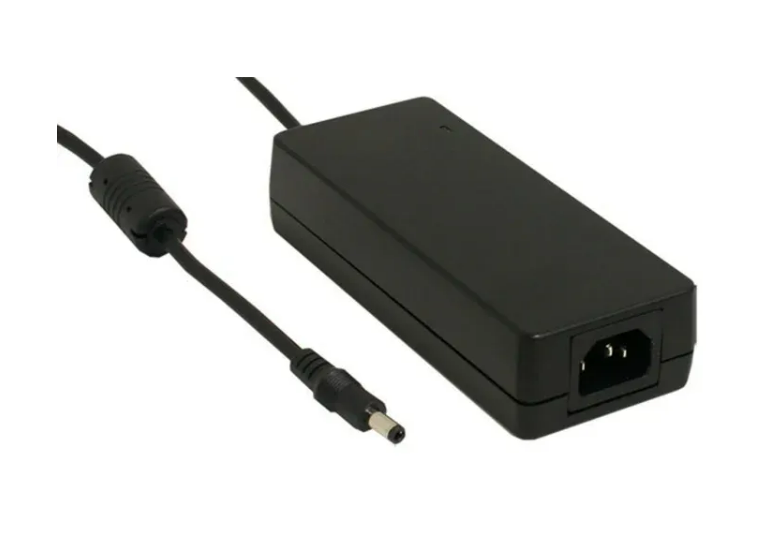

The Mean Well GST90 Series are Single Output 90W Desktop Green Adaptors. This class I desktop power supply features a very low No Load Power Consumption of ˂0.15W and up to 91% high efficiency, making it a good energy saving alternative. The GST90 comes in a 94V-0 rated plastic case, which is flame retardant and prevents users from electric shock. This Green Desktop Power Adaptor complies with energy efficiency level VI. The power adapter features an LED indicator and protections for short circuit, overload and over voltage. The GST90 guarantees safety and reliability and is ideal for applications such as consumer electronic devices, telecommunication devices, office facilities and industrial equipments.
Features
- Universal AC input / full range
- 3 pole AC inlet IEC320-C14
- Protections for short circuit, overload, over voltage and over temperature
- Fully enclosed Plastic Case
- Class I Power with earth pin
- LED indicator for Power on
- No load power consumption ˂0.15W
- ErP level VI compliant
Approvals
VI / PFC / UL / CUL / TUV / CB / FCC / CE
Standards
UL60950-1, TUV EN60950-1, BSMI CNS14336, CCC GB4943, J60950-1
Note
Meanwell Adapter Cable is you have to buy separately. The purchase link is here:
Meanwell Adapter Cable EU1-MC13
Technical Specifications
Here is your updated table, with the new Brand row added at the top:
| Specification | Details |
|---|---|
| Brand | Mean Well |
| Adapter Type | Power Brick Adapter |
| Output Voltage | 19V dc |
| Input Voltage | 90 → 264V ac |
| Output Current | 4.74A |
| Maximum Temperature | +70°C |
| Output Connector | P1M |
| Input Connector | IEC 320-C14 |
| Number of Outputs | 1 |
| Power Rating | 90W |
| Cable Length | 1200mm |
| Better World Product | Yes |
| Better World Verification | UL Energy Verified |
| Efficiency | 90% |
| MTBF | 348.7kh |
| Standards Met | AU/NZ MEPS, BSMI CNS14336, CB, CCC GB4943, CE, Class B, CNS13438, CoC Version 5, cULus, EISA 2007/DoE, EN 000-4-11, EN 55022 Class B, EN 61000-3-2, EN 61000-3-3, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, Energy E |
| Width | 60mm |
| Depth | 32mm |
| Minimum Temperature | -30°C |
| Energy Efficiency Level | VI |
| Load Regulation | ±4% |
| Line Regulation Range | ±1% |
| Series | GST90A |
| Length | 145mm |
